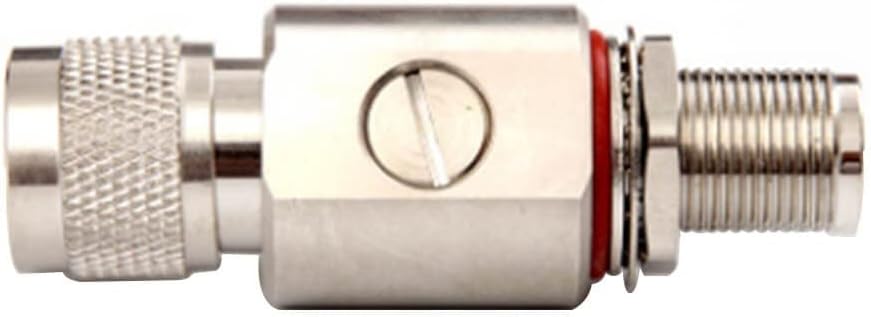

N Male to N Female Bulkhead Coaxial R-F Lightning Arrester N-JKY DC-3GHz 180Degree IP67

Applications:3G/4G/LTE Cellular ModemsRoutersBoosters/Amplifiers2.4&5GHz WiFi Access Pointsother Sensitive Communications DevicesTechnical Parameters:Electrical CharacteristicsPower capacity (W) : 0-100wContact resistance: 50 ΩFrequency range:DC - 6GHzMechanical CharacteristicsConnector Mounting Type：Bulkhead/Panel/OutdoorInstallation angle：Straight/ Right AngleDurability: >500 cyclesEnvironmental CharacteristicsAmbient temperature:-40 ~ +85ºCTemperature: -40 to +155°C/ 5 to 95% non-condensingEnvironmental Protection L evel: IP55Material:artMaterialOuter conductorcopper/stainless steelCentral conductorcopperInsulatorpolytetrafluoroethylene/polyethyleneCoatinggold plated/silver/nickel/tinConstructionNickel plated brass

• Coaxial R-F Surge Protector,N Type To N Type,Male To Female,Straight,IP67,DC-3GHz,Coaxial Connector
• Special shielding design, excellent surge performance, can withstand multiple lightning strikes;
• Excellent passive intermodulation performance, excellent R-F performance in the whole working band and superior power processing capability；
• Bi-directional protection、DC Pass;
• High Quality with 30 days 100% Money back;
