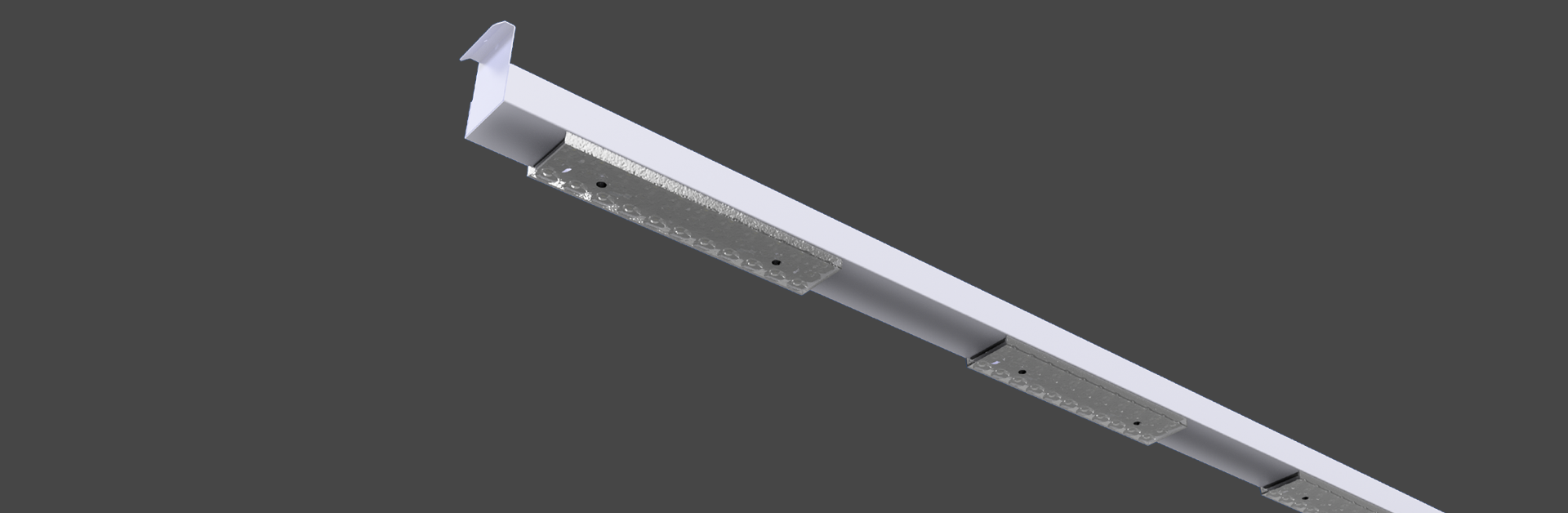

Tego ChannelLED SL CTA
If you’re looking for a basic luminaire that won’t break the bank, look no further than the Tego Channelled SL CTA. This sleek and simple luminaire will light up your life without burning a hole in your wallet. Get the Tego Channelled SL CTA today and enjoy the benefits of a cost-effective luminaire that will make you smile.
CHANELLED SL CTA
Smart lens technology
Unique optics with good efficiency. The luminaire is placed in the Tego system ceiling as a hook-on secondary. The luminaire is available in four different beam angles.
CHANNELLED SL CTA
Inovativ design
If the luminaire Teg Kanalled SL CTA is placed in a row in the Tego System ceiling, all lenses will have the same distance.
Luminous flux
6000 – 8500 lm
Connected load
39 – 60 W
Beam angle
90 °
3000K
80
Control
On/Off
Tego System ceiling (hook-on)
Connector
Wieland
Galvanized sheet metal
Color
White
IP class
Safety class
1
Max #/fuse
10pcs – 10A Type B
16pcs – 16A Type B
16pcs – 10A Type C
25pcs – 16A Type C
Lifespan
Output 50 000h L90, 100 000h L80
Driver 100 000h / 10%
EPREL Energy class
Contains a class C light source.
Maintenance/Cleaning
Clean with lukewarm water. Dry with slightly damp all-purpose cleaning cloth. When cleaning luminaire frames, the voltage must always be disconnected. Electrical components or wiring harnesses must not be exposed to detergents or water.
Damaged or broken
The light source and/or connecting cable in this luminaire should only be replaced by the manufacturer, manufacturer’s service agent, or an equivalent qualified person. Do not connect luminaire with visible damage to cable, luminaire housing, or optic lens/LED optics.
