LED lighting is increasingly the technology of choice in retail.

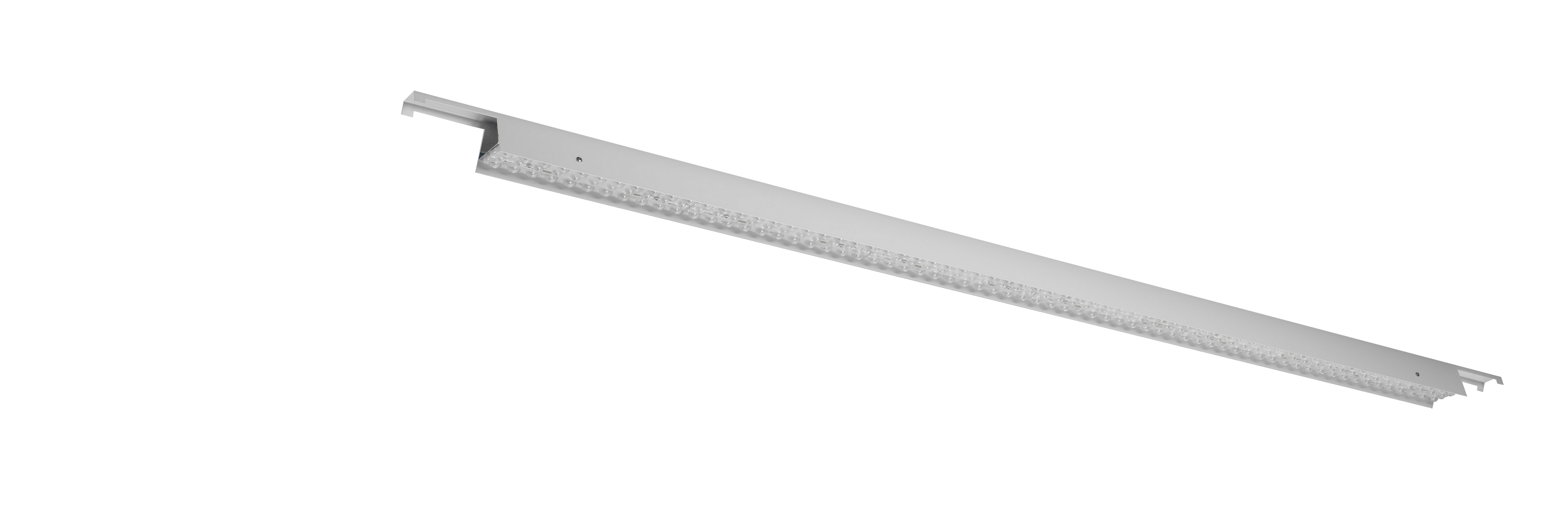

Tego luminaire FLEXILED

FLEXILED is a luminaire designed for use with Tego ceiling systems 100-80, 160-40 and Flexiline. Unique optics with good efficiency.
Tego can provide bespoke ceiling and lighting solutions for your business.

MATERIAL
Galvanized steel

COLOUR*
White
Unpainted

OPTICS
Double asymmetric
Symmetrical 60°
Symmetrical 90°

LED MODULE
Philips Fortimo Led Line 3R

OUTPUT
6600lm 100-80 module 2000
5500lm 100-80 module 1800
4400lm 100-80 module 1500
6600lm 160-40 module 2000
5500lm 160-40 module 1800
4400lm 160-40 module 1500

COLOUR TEMPERATURE
3000/4000 K

COLOUR RENDERING
>80, >90

BALLAST
Integrated Philips
DALI

LIFESPAN
L90 >50 000 h

CONNECTOR*
EU plug
3-pin Wago
Wieland

WARRANTY
Electronics 5 years

INGRESS RATING
IP21

MAX # PER FUSE (Philips)
15st               /10A Type B
24st               /16A Type B
24st               /10A Type C
40st               /16A Type C

MAX # PER FUSE (Vossloh)
14st               /10A Type B
23st               /16A Type B
23st               /10A Type C
38st               /16A Type C


 Classification of insulation between 230V conductors and conductors for DALI control: Basic insulation level.

NOTES
*Others available on request

This product is containing a light source with energy class C. We are exempted of registering in EPREL due to that our products light sources are removable and replaceable with common available tools.

Energi klass - C

Philips

Vossloh

In case of a damaged or broken luminaire

LED module
The light source in this luminaire should only be replaced by the manufacturer, the manufacturer’s service agent or an equally qualified person.

Connection cable
If the connection cable or cord on this luminaire is damaged, the luminaire must NOT be connected. The cable must be replaced by the manufacturer, the manufacturer’s service agent or a certified electrician to ensure the product is safe.

Maintenance / Cleaning
Clean with lightly damp cleaning cloth. Electrical components or cabling must not be exposed to cleaning agent or water. It is important to always disconnect the voltage before cleaning the luminaire body.
