Ledline Optic

LEDline Optic

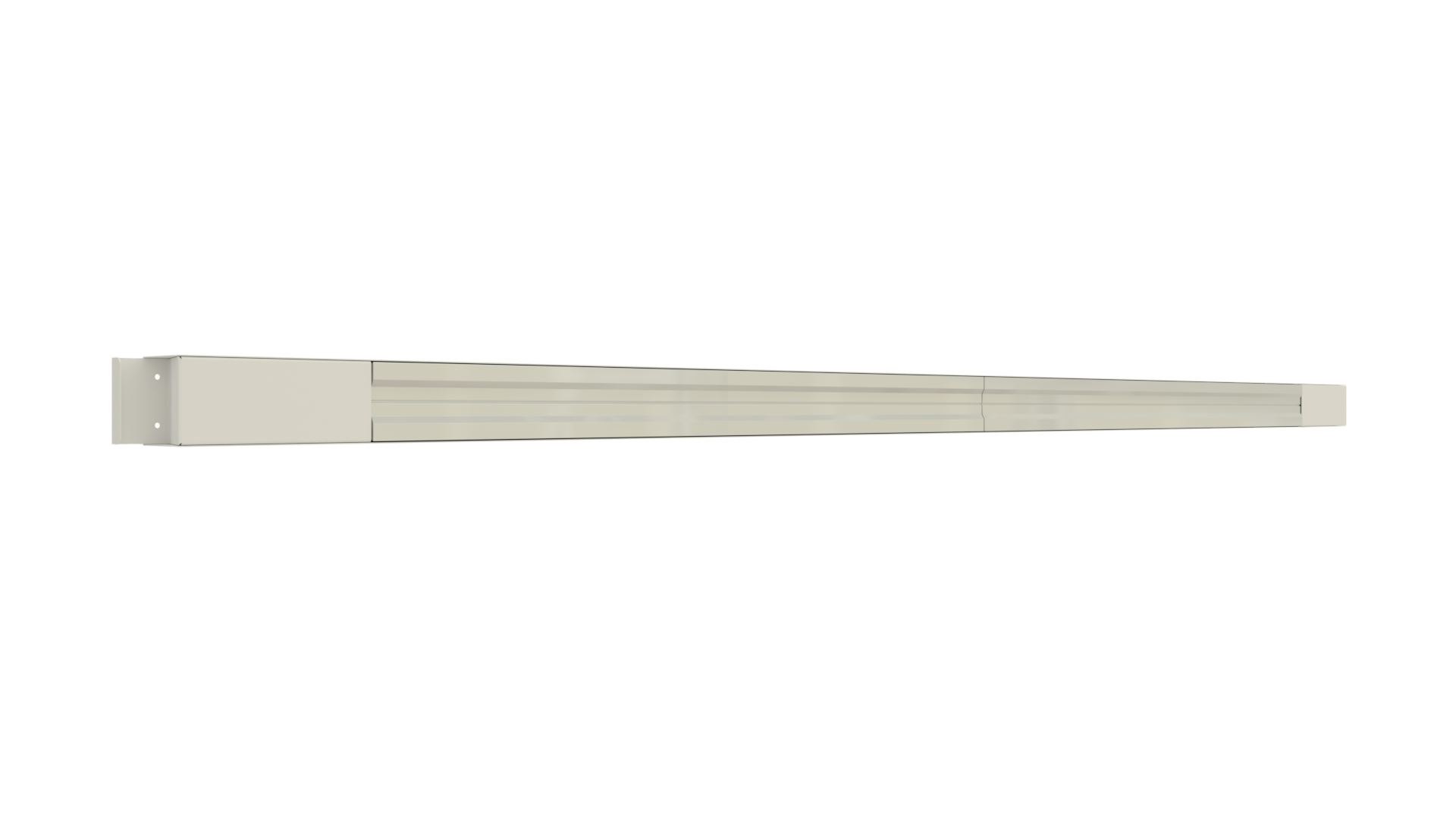

Ledline Optic is a luminaire intended for Tegos Systemtak, 100-80, 160-40. Unique optics with good efficiency.

It is the second generation of the Ledline family where we have succeeded in achieving 30% higher efficiency through the use of optical lenses. The optical lenses also make it possible to choose precisely where the light should shine.

The LEDline Optic luminaire is perfect as basic lighting for displaying goods on a shelf, for example in a grocery store.

MATERIAL
Galvanized steel

COLOUR*
White

OPTICS
Symmetrical 3
Symmetrical 60°
Symmetrical 90°
Symmetrical 110°
Asymmetric
Double asymmetric

LEDMODUL
Philips Fortimo 1R

OUT PUT (max)*
5000lm 100-80/160-40 module 1500
6500lm 100-80/160-40 module 1800
8000lm 100-80/160-40 module 2000

COLOUR TEMPERATURE
3000K
4000K

COLOUR RENDERING
>80, >90

BALLAST
Signify Philips
Dali**

LIFESPAN
>50 000 h

CONNECTOR*
EU-plug
Wago
Wieland

WARRANTY
Elektronics 5 years.

INGRESS RATING
IP20

MAX # PER FUSE (Philips)
15st               /10A Type B
24st               /16A Type B
24st               /10A Type C
40st               /16A Type C

MAX # PER FUSE (Vossloh)
14st               /10A Type B
23st               /16A Type B
23st               /10A Type C
38st               /16A Type C




NOTES
The light aperature varies depending on the lenght and effect.
The luminaire uses lenses to give a uniform and nice light picture. The lenses also makes it possible to direct the light.

**Classification of insulation between 230V conductor and conductor for controlling with DAli: Basic isolation level.

*Others available on request

This product is containing a light source with energy class C. We are exempted of registering in EPREL due to that our products light sources are removable and replaceable with common available tools.

Energi klass - C

In case of a damaged or broken luminaire

LED module
The light source in this luminaire should only be replaced by the manufacturer, the manufacturer’s service agent or an equally qualified person.

Connection cable
If the connection cable or cord on this luminaire is damaged, the luminaire must NOT be connected. The cable must be replaced by the manufacturer, the manufacturer’s service agent or a certified electrician to ensure the product is safe.
