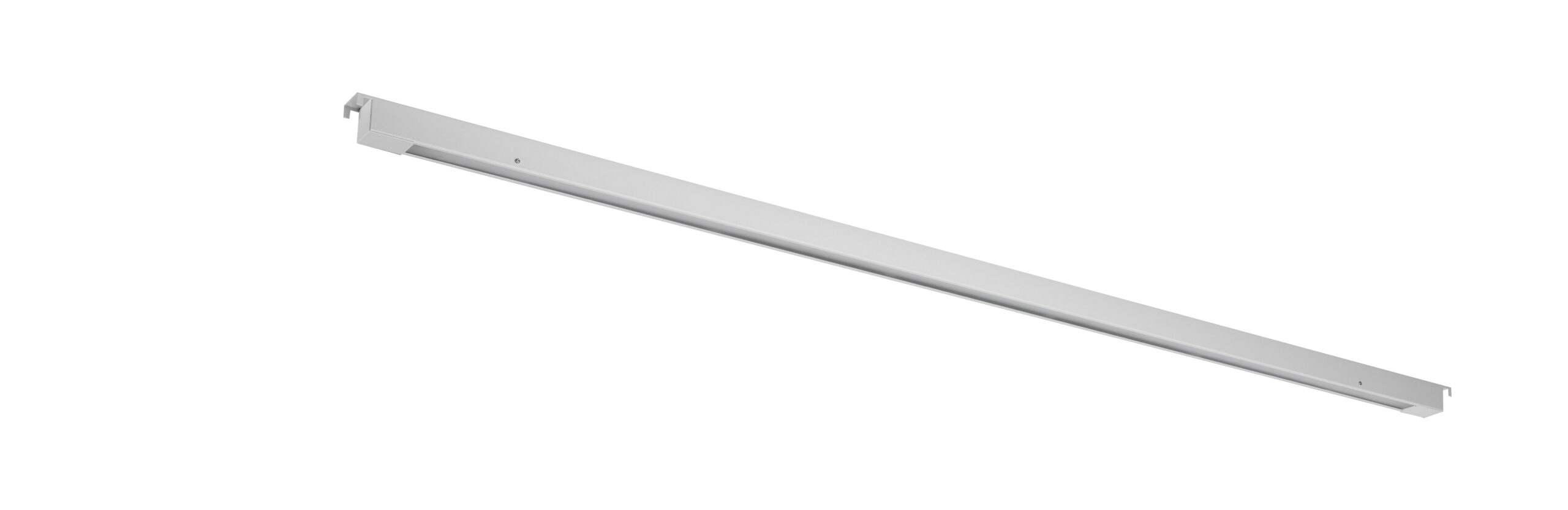

Tego luminaire LEDLINE45
If you are looking for a luminaire that fits perfectly to your Tego System ceiling, then you have found it! The Tego Ledline45 luminaire is a smart and stylish solution that is hooked over the channels and gives you a good light image. You don’t have to worry about drilling holes or pulling cables, just hook the luminaire and enjoy the pleasant light.
LEDLINE 45
Even light
Ledline45 has an opal disc that gives an even and pleasant light with a good light pattern.
Luminous flux
2000 – 5500 lm
Connected load
21 – 65W
Beam angle
Opal diffuser
3000K / 4000K
>80, >90
Control
Dali, On/Off, Mesh Connected Ready
Tego System ceiling
Connector
EU / Wago / Wieland
Galvanized sheet metal
IP class
Safety class
1
Max # / fuse
15pcs – 10A Type B
24pcs- 16A Type B
24pcs- 10A Type C
40pcs- 16A Type C
Lifespan
Output 50 000h L90, 100 000h L80
Driver 100 000h / 10%
EPREL Energy class
Contains a class D light source.
Maintenance/Cleaning
Clean with lukewarm water. Dry with slightly damp all-purpose cleaning cloth. When cleaning luminaire frames, the voltage must always be disconnected. Electrical components or wiring harnesses must not be exposed to detergents or water.
Damaged or broken
The light source and/or connecting cable in this luminaire should only be replaced by the manufacturer, manufacturer’s service agent, or an equivalent qualified person. Do not connect luminaire with visible damage to cable, luminaire housing, or optic lens/LED optics.
