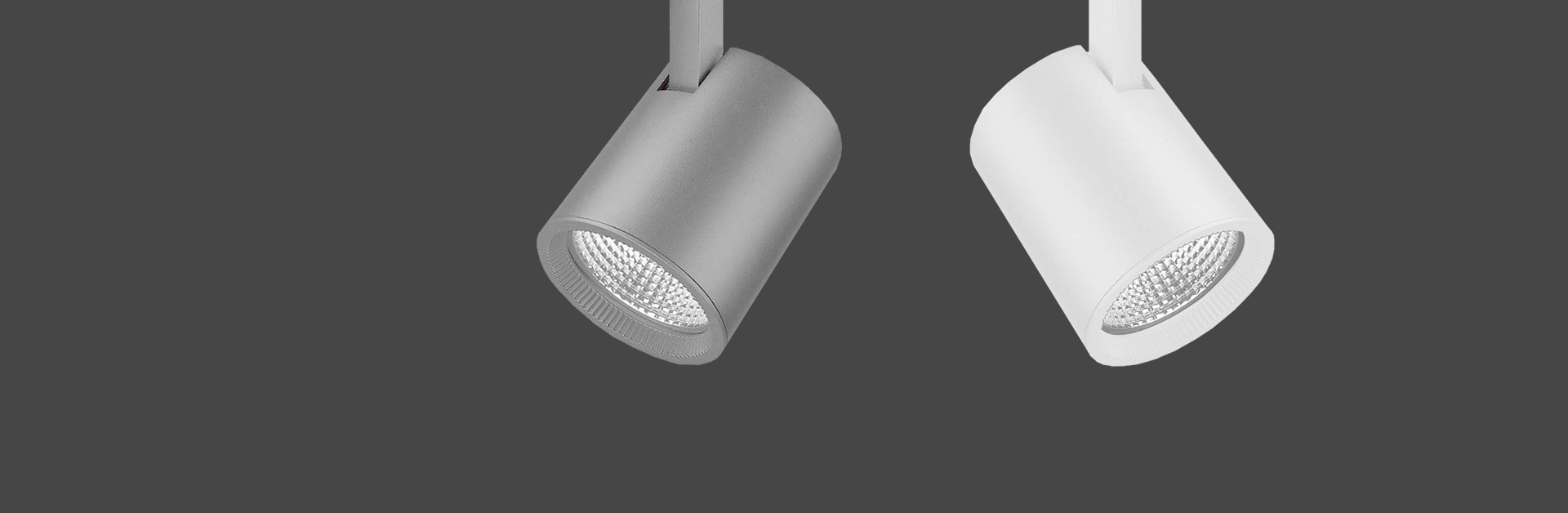

Spotlight Edda L
Spotlight Edda L is a brilliant idea for those who want flexible lighting. It is designed to fit 3-phase power track, so you can move and turn it as you wish. Spotlight Edda L is suitable for several different environments and applications, from the living room to the conference room. It has a modern design and is available in several colors. Spotlight Edda L is not just a lamp, but a star on your stage.
EDDA
Flexible solution
Spotlight Edda L is convenient solution for 3-phase power track. Available in several different configurations.
Luminous flux
1450 – 4450 lm
Connected load
14 – 38,5 W
Beam angle
15, 30, 45, 60 °
3000K / 4000K
>80, >90
Control
Dali, On/Off
Power track
Accessories
Clear glass, frosted glass, honeycombs, barn doors
Connector
UA
Aluminium
Color
White, black, grey
IP class
Safety class
2
Max # / fuse
22pcs – 10A Type B
36pcs – 16A Type B
37pcs – 10A Type C
61pcs – 16A Type C
Lifespan
Output 50 000h L90, 100 000 L80
Minimum distance
To illuminated object is 0.1 m.
EPREL Energy class
Contains a class D light source.
Maintenance/cleaning
Blow off dust with compressed air. When cleaning luminaire frames, the voltage must always be disconnected. Electrical components or wiring harnesses must not be exposed to detergents or water.
Damaged or broken
The light source and/or connecting cable in this luminaire should only be replaced by the manufacturer, manufacturer’s service agent, or an equivalent qualified person. Do not connect luminaire with visible damage to cable, luminaire housing, or optic lens/LED optics.
