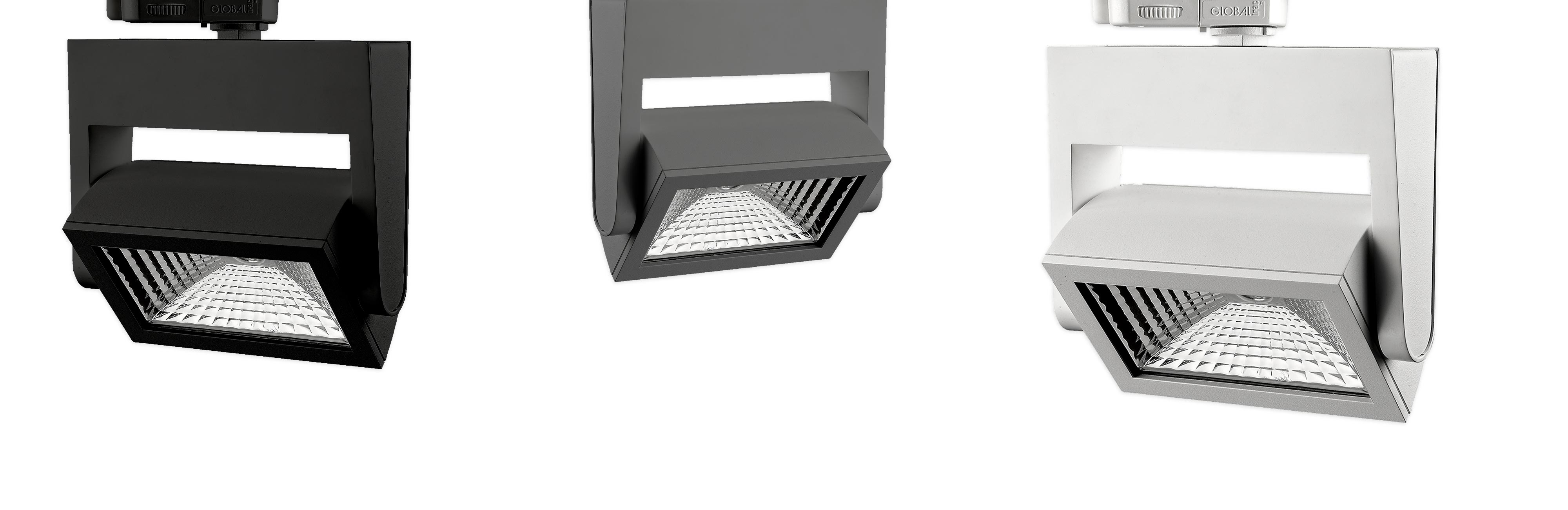

NANNA L

Wall washer

If you want to brighten up your walls, you need Spotlight Nanna L. This wall washer is great for illuminating bigger walls with a good general lighting.

Luminous flux

1100 – 4700 lm

Connected load

9,5 – 38,5 W

Beam angle

90×70 °

Kelvin

3000K / 4000K

CRI

>80, >90

Control

Dali, On/Off

Installation

Power track

Accessories

Clear glass, frosted glass

Connector

UA

Material

Aluminium

Color

White, black, grey

IP class

IP20

Safety class

1

Max #/ fuse

22pcs – 10A Type B
36pcs – 16A Type B
37pcs – 10A Type C
61pcs – 16A Type C

Lifespan

Output 50 000h L90, 100 000 L80

Minimum distance

To illuminated object is 0.1 m.

EPREL Energy class

Contains a class E light source.

Maintenance/cleaning

Clean with lukewarm water. Dry with slightly damp all-purpose cleaning cloth. When cleaning luminaire frames, the voltage must always be disconnected. Electrical components or wiring harnesses must not be exposed to detergents or water.

Damaged or broken

The light source and/or connection cable of this luminaire shall only be replaced by the manufacturer, the manufacturer’s service agent or an equivalent qualified person. Do not connect luminaire with visible damage.

Ljuskällan och led driver får bara bytas av yrkesmässig person.
