Roundline Eco Våtrum

Small and efficient

Wet areas like bath and shower rooms have the same high comfort demands as other spaces. Roundline Eco Våtrum heater has an electronic thermostat that provides a comfortable and even temperature that saves a lot of energy.

The smallest wet room heater on the market that has an electronic thermostat. It keeps a low surface temperature and its safety class is IP 24 (splash proof) and can be placed in zone 2 and above. The heater comes in 300W and 600W.

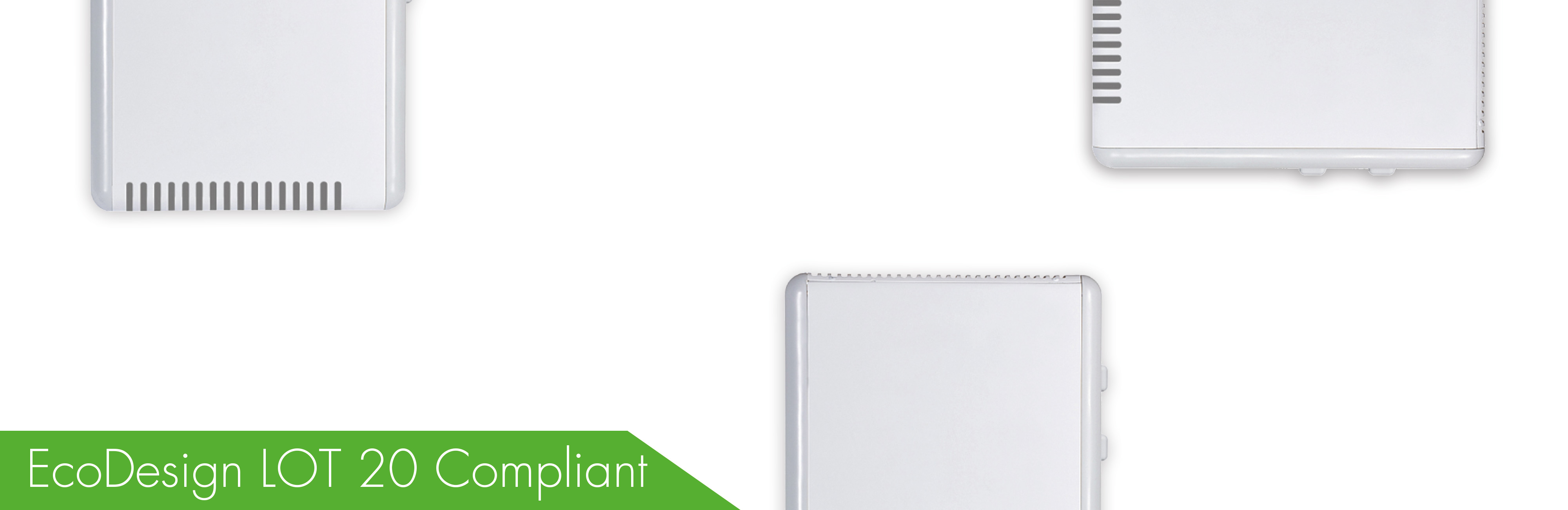

The Roundline Eco Våtrum heater is EcoDesign and Lot 20 compliant. Want to know more? Click here.

Five pre-programmed  programs



  • Day program, from the time the button is pressed the temperature is lowered by 3 degrees for 6 hours. This will repeat every 24 hours.
  • Day program, from the time the buttion is pressed the temperature is lowered by 3 degrees for 8 hours. This will repeat every 24 hours.



  • Week program, from the time the button is pressed the temperature is lowered by 3 degrees for 6 hours day 1-5. Day 6-7 no change in temperature.
  • Week program, from the time the button is pressed the temperature is lowered by 3 degrees for 8 hours day 1-5. Day 6-7 no change in temperature.
  • Week program, from the time the button is pressed the temperature is lowered by 3 degrees for 6 hours day 1-5. Day 6-7 the temperature is lowered by 3 degrees for 8 hours.

Zones

There are three different zones in a wetroom, the zones are based on the distance from water and moisture and have different IP classes.

Zone 0

Inside of a bathtub or a shower space. Lowest IP allowed is 67.

Zone 1

Begins at the highest level of zone 0 to 225 cm above the floor. Ex. zone 1 is counted from the edge of the bathtub. Lowest IP allowed is 44.

Zone 2

Is 60 cm out from the edge of zone 0 and  225 cm up from the floor. Lowest IP allowed is 24.



THERMOSTAT
Electronic

The thermostat provides temperature stability of ±0.1°C independent of changes in external temperature.

Temperature range 5-35°C.

DIMENSIONS
300W: 325×400 mm
600W: 525×400 mm



FUNCTIONS
The temperature knob is located on the radiator’s side with an arrow and  20 °C marking.

Lowering the temperature: The temperature can only be lowered with the thermostat knob. A LED light lights up when the thermostat turns the heater on. When the thermostat is running normally the LED light lights up every 40 seconds and is turned on as long as needed for maintaining a steady temperature. there are both daily and weekly pre-programmed programs to choose from.

SAFETY

Roundline has a low surface temperature and is never hotter than approx. 70°C (at 230V/400V). In normal use (at 50 % capacity) this means approx. 35°C.

Roundline must not be covered. For extra safety the Roundline Eco Våtrum is equipped with an overheating fuse which will be activated in case of overheating

The radiator has a smooth design with no sharp corners.



INGRESS RATING
IP 24

MAINTENANCE
The smooth front is easy to keep clean.

Roundline is easy to swing out or detach when cleaning or renovating.

Vacuum from underneath the radiator.

WARRANTY
2 years
